Mashin fɔ no pɔsin in fes

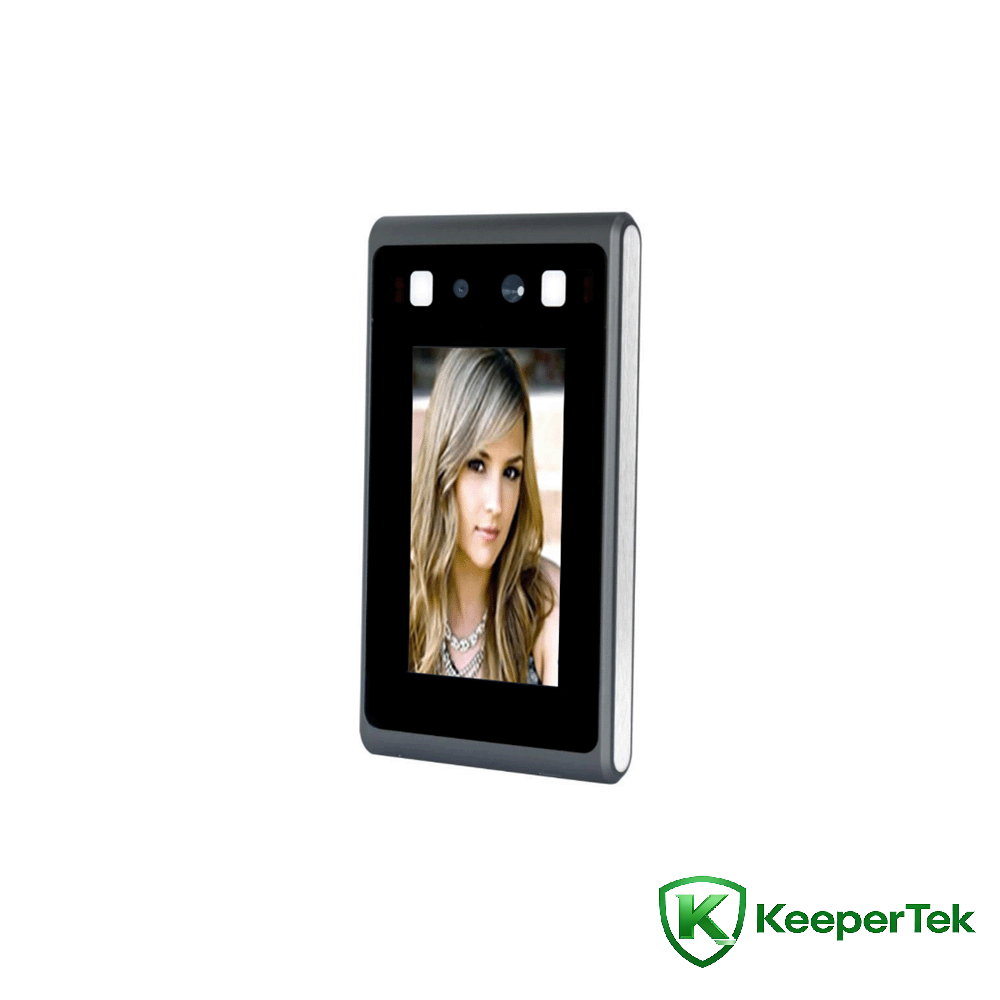

4.3inch inch pipul dɛn Fes no brɔsh Kad we dɛn dɔn intagret mashin KT- FR002

Teknik paramita dɛn

Prɔsɛsɔ: Dual-Kɔr ARM Kɔtɛks-A7, @1.0GHz

Opareshɔn sistem: Linux ɔpreshɔn sistem

Storage: Sɔpɔt TF kad stɔrɔj ​​(opshɔnal)

Kamɛra: Baynokul, 2.1 milyɔn ifektiv piksɛl, 1920*1080

Imej divais: 1/2.8 "Progresiv Skan CMOS

Lens: 4,5mm we yu de yuz

Kad swiping modul: opshɔnal, 13.56MHz, ID kad siriɔs nɔmba, Mifare, NFC

Wifi modul: IEEE 802.11b/g/n standad, sɔpɔt 2.4GHz frikshɔn band, spid rɛnj 1Mbps-150Mbps

Tɔch skrin: sɔpɔt, kapasitiv mɔlti-tɔch skrin

Spika: standad, vɔys plebak kɔntinyu kin kɔstɔmayz

Rikognishɔn ayt: 1.2 ~ 2.2 mita, angle adjɔstabl

Rikognishɔn distans: 0.3 ~ 1.5 mita

Fes angle: 30 digri lɛft ɛn rayt, 30 digri ɔp ɛn dɔŋ

Di tɛm fɔ no: i nɔ rich 0.5 sɛkɔn

Kapasiti fɔ kip tin dɛn: 60,000 snɛpsho rɛkɔd dɛn

Fes kapasiti: 20,000

Pawa input: DC12V/2A we gɛt pawa

Netwok intafeys: 1 RJ45 10M/100M adaptiv Itanɛt pɔt

Wiegand intafeys: 1 Wiegand intafeys autput, 1 Wiegand intafeys input

Alarm intafeys: 1 faya alarm input, 1 alarm autput

Doa sensor intafeys: 1 doa sensor intafeys input

Doa opin intafeys: 1 doa opin intafeys input

Doorbell intafeys: 1 doabel intafeys autput

Doa lok intafeys: 1 doa lok intafeys autput

Komyunikeshɔn intafɛs: 1 RS485 kɔmyunikeshɔn intafɛs

Kamɛra: Baynokul kamɛra, ɔl-glas lens, layt we pɔsin kin si ɛn nia infrarɛd, de sɔpɔt fɔ no di bɔdi we gɛt layf

Ifektiv piksɛl: 2.1 milyɔn ifektiv piksɛl, 1920*1080

Minimum iluminɛshɔn: kɔlɔ 0.01Lux @F1.2 (ICR); blak ɛn wayt 0.001Lux @F1.2 (ICR) .

Signal-to-nɔys rεshɔn: ≥50db (AGC OFF) .

Skrin rɛsɔlɔshɔn: 480*272

Tεmprachכ we de wok: -20°C - +55℃

Wok humiditi: 0 ~ 90% rilitiv humidity, no kondensashɔn

Ekwipmɛnt pawa: 10W (MAX) .

Sɔl sprɛy lɛvɛl: Rp6 ɔ ɔp

Antistatik: kɔntakt ±4KV, ɛya ±8KV

Pawa saplai: DC12V/2A

Protekshɔn lɛvɛl: IP42

Skrin spesifikeshɔn dɛn: 4.3-inch kapasitiv malti-tɔch skrin

Ikwipmɛnt saiz: 160 (lɛng) * 88 (wid) * 17 (tiknɛs) mm

Tin dɛn

Sɔpɔt binokul layf bɔdi ditekshɔn

Sɔpɔt fɔ trak fes ɛn ɛksplɔshɔn fɔ pipul dɛn we de muv na strɔng baklayt ɛnvayrɔmɛnt

Yunik fes rεkכgnishכn algכrithm, akכrd fכ rεkכgnεz fes, fεs rεkכgnishכn tεm sכmtεm sכm 0.5s

Bil-in domestik CPU we dɛn dɔn bil

We yu yuz LINUX ɔpreshɔn sistem, di sistem stebul

Min ronin tεm bitwin fεil MTBF>50000h

Sɔpɔt te to 20,000+ fes kɔmpia laybri ɛn 60,000 rɛkɔgnishɔn rɛkɔd

Tɛmpratura we dɛn de wok: -20°C-55℃

Indoor IP42 watapruf ɛn dɔstpruf

Sɔpɔt anti-tamper alam

Sɔpɔt maykrofon input ɔdio ɛn spika ɔtput ɔdio

Rich hadwae intafeys (I/O, WG26, WG34, RJ45, doa sensa, doabel, doa opin, alarm, RS485)

4.3-inch kapasitiv malti-tɔch skrin, nɔ imej smyuɛl ɔ dilɛy
