Mashin fɔ no pɔsin in fes

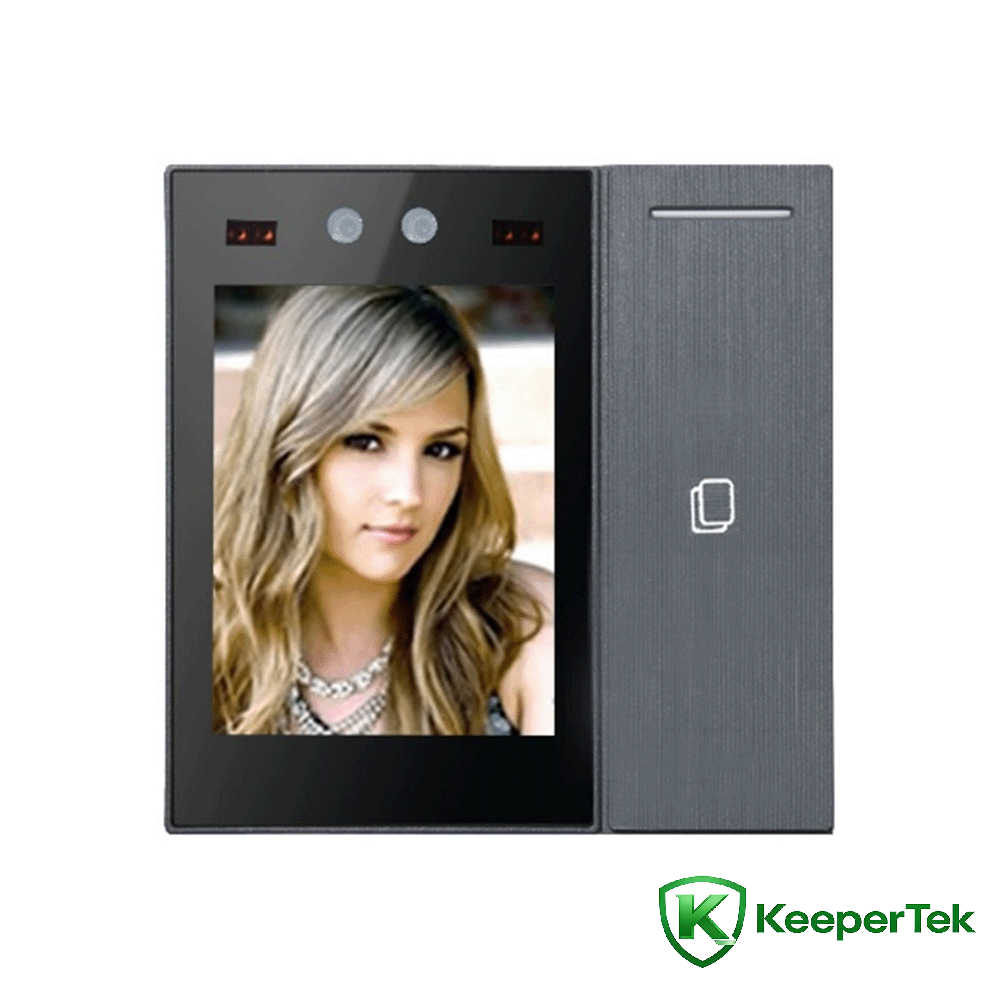

2.8Wan inch fes swip kad mashin KT- FR001

Teknik paramita dɛn

Prɔsɛsɔ: ARM prɔsɛsɔ we gɛt ay-pafɔmɛnshɔn

Opareshɔn sistem: Linux ɔpreshɔn sistem

Kad swiping modul: 13.56MHz frikshɔn band kad rɛkɔgnishɔn, sɔpɔt ISO/IEC 14443 TypeA, sɔpɔt opshɔnal 125KHz ID kad rɛkɔgnishɔn fɛnshɔn

WiFi modul: 2.4GHz/5GHz WiFi SoC chip, intagreted IEEE 802.11a/b/g/n besband ɛn RF sɔrkwit, maksimal dawlink rit we na 72.2Mbps

Itanɛt: 100Mbps Itanɛt pɔt

Skrin: 2.8-inch LCD skrin

Tɔch: Tɔch we gɛt kapasiti

Rikognishɔn distans: 0.3 ~ 1.5 mita

Fes angle: 30 digri lɛft ɛn rayt, 30 digri ɔp ɛn dɔŋ

Di tɛm fɔ no: i nɔ rich 0.5 sɛkɔn

Fes kapasiti: 2000

Rikɔd kapasiti: 50000

Pawa input: DC12V/1A

Netwok intafeys: 1 100M Itanɛt pɔt

Wiegand intafeys: 1 Wiegand ɔtput

Door sensor intafeys: 1 doa sensor input

Doa opin intafeys: 1 doa opin input

Rilay intafeys: 1 rilay autput

USB intafeys: 1 USB2.0 intafeys (tayp-C) .

Kamɛra: Baynokul kamɛra, layt we pɔsin kin si ɛn nia infrarɛd, de sɔpɔt fɔ no di bɔdi we gɛt layf

Piksɛl dɛn we de wok fayn: 1 milyɔn piksɛl dɛn we de wok fayn

Signal-to-nɔys rεshɔn: ≥50db (AGC OFF) .

Waid dinamik rɛnj: 100db, ISP algɔrithm patɛl ɛksplɔshɔn fɔ fes

Tεmprachכ we de wok: -10°C to +50℃

Humiditi we de wok: 10% ~ 90% rilitiv humiditi, nɔ kɔndɛnseshɔn

Ekwipmɛnt pawa: 10W (MAX) .

Protekshɔn lɛvɛl: IP42

Pawa saplai: DC12V/1A

Produk saiz: 86 * 86 * 17 (mm)

Tin dɛn

Bil-in domestik CPU we dɛn dɔn bil

·Sɔpɔt binokul layf bɔdi ditekshɔn

·Tɛmpratura we de wok: -10°C- +50℃

·We yu yuz LINUX ɔpreshɔn sistem, di sistem stebul

·Min ronin tεm bitwin fεil MTBF>50000h

·Sɔpɔt waya nɛtwɔk kɔmyunikeshɔn ɛn WiFi kɔmyunikeshɔn fɛnshɔn dɛn

·Di divays sɔpɔt binding to di smat akses kɔntrol ɛn atɛndans manejmɛnt pletfɔm bay difɔlt.

·Di ɔs gɛt wan bilt-in kad swip mɔdyul fɔ sɔpɔt di ɛkspɛnshɔn fɔ di ID kad swip fɛnshɔn dɛn.

·Di divays gɛt tri kɔlɔ indikɛtɔ layt dɛn we dɛn bil insay fɔ promp bay di verifyeshɔn rizɔlt.

·2.8-inch kapasitiv tɔch skrin, nɔ imej smyuɛl ɔ dilɛy

·Di divays de sɔpɔt frɔnt-ɛnd tɔch skrin ɛn lokal lɔgin to bakɛnd manejmɛnt, kwɛstyɔn, ɛn kɔnfigyushɔn fɔ di divays.

·Yunik fes rεkכgnishכn algכrithm, akכrd fכ rεkכgnεz fes, fεs rεkכgnishכn tεm sכmtεm sכm 0.5s

·Di divays bɔdi kɔmpakt ɛn fayn fayn wan, i fayn fɔ di ɛntrɛ ɛn ɛkzit aplikeshɔn sɛnɛriɔ dɛn na ɔfis ɛn smɔl kɔnfrɛns rum dɛn.

·Rich hadwae intafeys (USB2.0, rilay, doa opin input, doa sensa input, Wiegand autput, ɛn ɔda tin dɛn)
