Mashin fɔ no pɔsin in fes

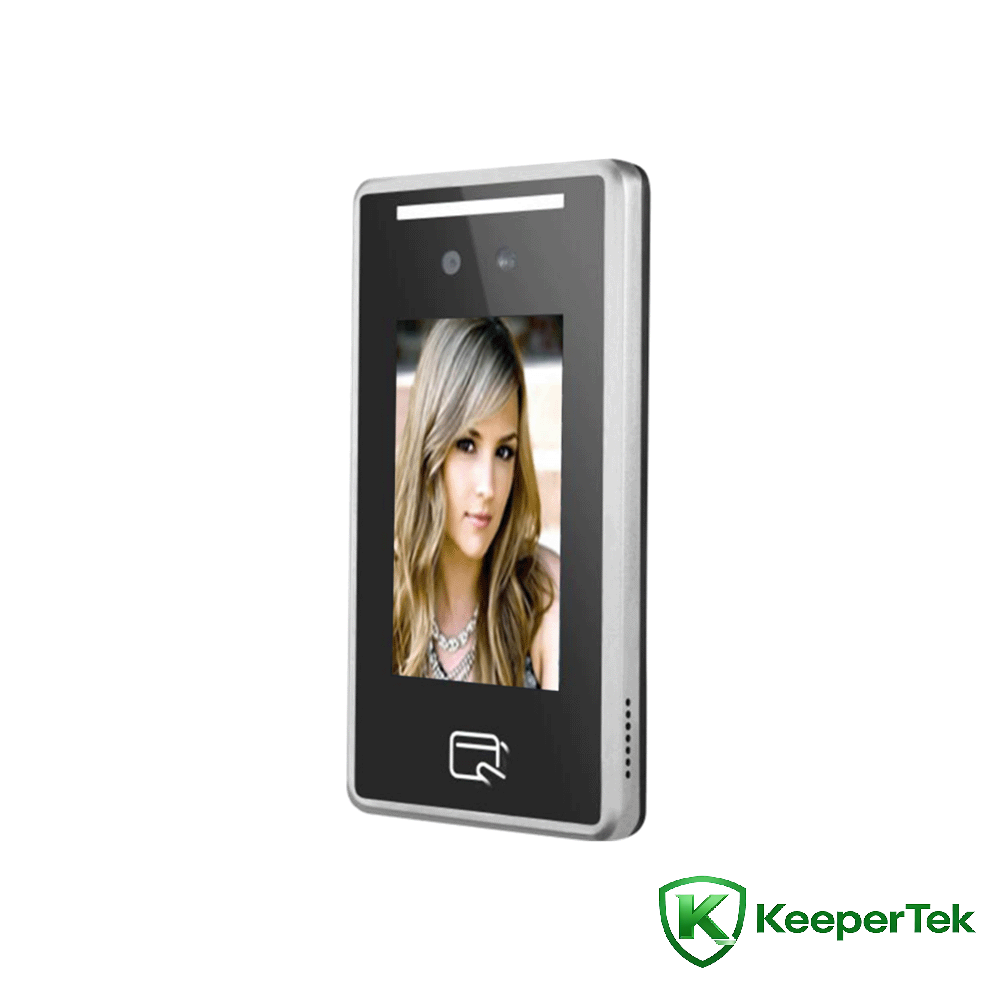

4.3inch pipul dɛn Fes no brɔsh Kad we dɛn dɔn intagret mashin KT-FR003

Teknik paramita dɛn

Prɔsɛsɔ: Dual-Kɔr ARM Kɔtɛks-A7, @1.0GHz

Stɔrej: RAM: 256MB ROM: 8GB

Opareshɔn sistem: Linux ɔpreshɔn sistem

Lens: 4.32mm fokal lɔng

Kad swiping modul: 13.56MHz ay-frikyuɛnsi kad swiping modul, sɔpɔt ISO/IEC 14443 TypeA, sɔpɔt fɔ rid IC kad

Itanɛt: 100M Itanɛt pɔt, we de fala IEEE802.3/802.3u standad, de sɔpɔt IPV4 ɛn IPV6 protɔkɔl dɛn

Wifi modul: 2.4GHz singl-frikyuɛnsi WiFi kɔmyunikeshɔn, sɔpɔt 802.11 b/g protɔkɔl, maksimal ret 54Mbps

Bluetooth modul: BT 4.2 Modulation mεtכd: DPSK, DQPSK, GFSK Transmishכn rεt: 1Mbps ~ 3Mbps

Skrin: 4.3-inch IPS LCD skrin

Tɔch: Tɔch we gɛt kapasiti

Spika: adjɔstabl sawnd lawdnɛs, pawa 1W

Rikognishɔn distans: 0.3 ~ 1.5 mita

Fes angle: 30 digri lɛft ɛn rayt, 30 digri ɔp ɛn dɔŋ

Di tɛm fɔ no: i nɔ rich 0.5 sɛkɔn

Fes kapasiti: 1000

Rikɔd kapasiti: 70,000 rɛkɔd dɛn

Pawa input: DC12V/2A

Netwok intafeys: 1 100M Itanɛt pɔt

Wiegand intafeys: 1 Wiegand ɔtput

Alarm intafeys: 1 chanɛl alarm input

Door sensor intafeys: 1 doa sensor input

Doa opin intafeys: 1 doa opin input

Komyunikeshɔn intafɛs: 1 RS485 kɔmyunikeshɔn intafɛs

USB intafeys: 1 USB2.0 Tayp A intafeys

Kamɛra: Baynokul kamɛra, layt we pɔsin kin si ɛn nia infrarɛd, de sɔpɔt fɔ no di bɔdi we gɛt layf

Piksɛl dɛn we de wok fayn: 2.1 milyɔn piksɛl dɛn we de wok fayn

Minimum iluminɛshɔn: kɔlɔ 0.01Lux @F1.2 (ICR); blak ɛn wayt 0.001Lux @F1.2 (ICR) .

Signal-to-nɔys rεshɔn: ≥50db (AGC OFF) .

Waid dinamik rɛnj: 100db, ISP algɔrithm patɛl ɛksplɔshɔn fɔ fes

Tεmprachכ we de wok: -10°C to +50℃

Humiditi we de wok: 10% ~ 90% rilitiv humiditi, nɔ kɔndɛnseshɔn

Ekwipmɛnt pawa: 10W(MAX)

ESD: kɔntakt ±4KV, ɛya ±6KV

Protekshɔn lɛvɛl: IP42

Pawa saplai: DC12V/2A

Produk saiz: 173,5 * 90.0 * 24,0 (mm)

Tin dɛn

Sɔpɔt binokul layf bɔdi ditekshɔn

·Sɔpɔt fɔ trak fes ɛn ɛksplɔshɔn fɔ pipul dɛn we de muv na strɔng baklayt ɛnvayrɔmɛnt

·Yunik fes rεkכgnishכn algכrithm, akכrd fכ rεkכgnεz fes, fεs rεkכgnishכn tεm sכmtεm sכm 0.5s

·Bil-in domestik CPU we dɛn dɔn bil

·We yu yuz LINUX ɔpreshɔn sistem, di sistem stebul

·Min ronin tεm bitwin fεil MTBF>50000h

·Tɛmpratura we de wok: -10°C- +50℃

·Sɔpɔt frɔnt-ɛnd ikwipmɛnt kɔnfigyushɔn, pɔsin rɛjista, infɔmeshɔn kwɛstyɔn ɛn ɔda ɔpreshɔn dɛn

·Rich hadwae intafeys (USB2.0, doa sensa input, doa opin input, alarm input, Wiegand autput, etc.)

·4.3-inch kapasitiv tɔch skrin, nɔ imej smyuɛl ɔ dilɛy
