Mashin fɔ no pɔsin in fes

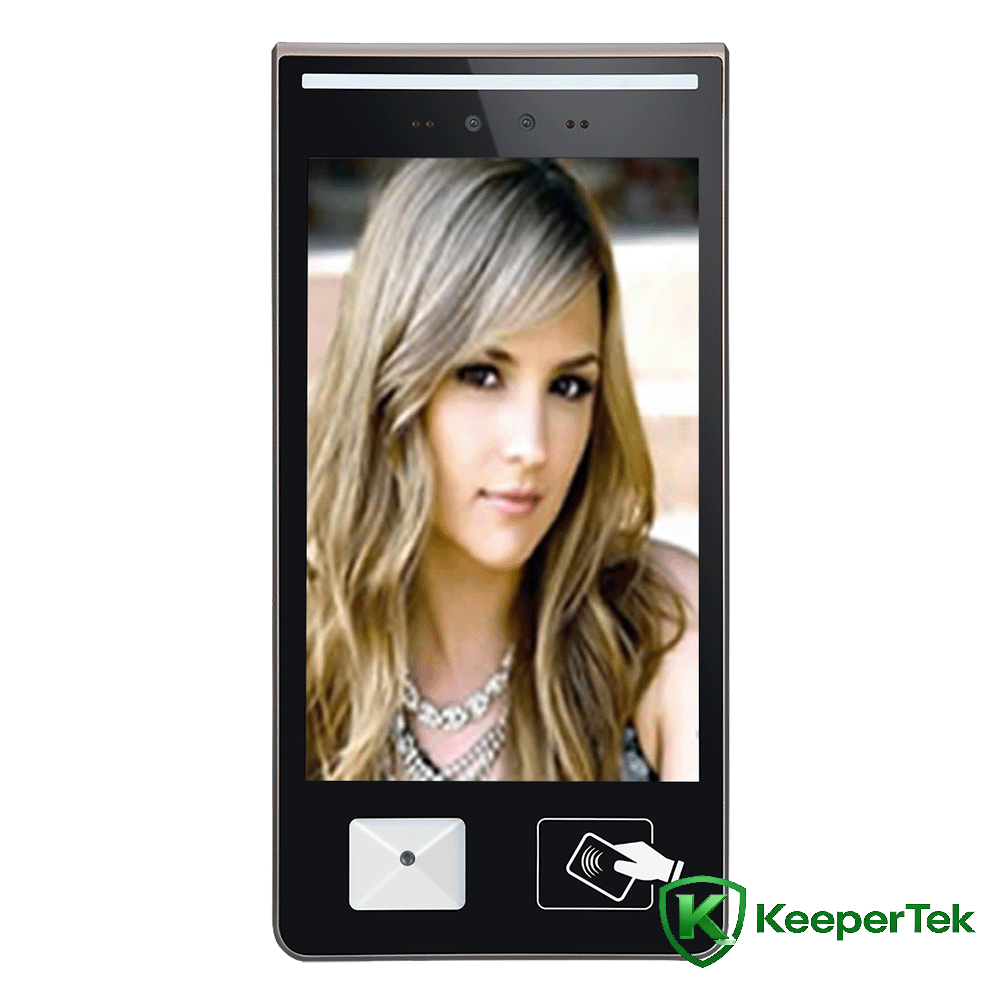

10.1Inch pɔsin Fes no tu-dimɛnshɔnal Ɔl-in-wan kɔd swiping ɛn kad advatayzmɛnt mashin KT- FR016

Teknik paramita dɛn

Prɔsɛsɔ: Domɛstik dual-kɔr prɔsɛsɔ + 1G mɛmori + 8G EMMC

Opareshɔn sistem: Linux ɔpreshɔn sistem

Storage: Sɔpɔt TF kad stɔrɔj ​​(opshɔnal)

Kamɛra: Baynokul, 2.1 milyɔn ifektiv piksɛl, 1920*1080

Imej divais: 1/2.8 "Progresiv Skan CMOS

Lens: 4.5mm fokal lɔng

Kad swiping modul: mifare wan (M1), S50, S70, NTAG2xx ɛn ɔda 13.56MHz frikshɔn band kad, TK, EM ɛn ɔda siriɔs 125KHz frikshɔn band kad (we IC/ID sɔpɔt)

QR kod ridin modul: de sɔpɔt QR Kɔd, PDF417, ECC200, EAN13, Code128 ɛn ɔda QR kɔd dɛn ɛn wan-dimɛnshɔnal kɔd dɛn

Tɔch skrin modul: kapasitiv mɔlti-tɔch skrin

Spika: Yu kin kɔstɔmayz di tin dɛn we de insay di vɔys we yu de ple

Rikognishɔn ayt: 1.2 ~ 2.3 mita, angle adjɔstabl

Rikognishɔn distans: 0.5 ~ 2.5 mita

Fes angle: 30 digri lɛft ɛn rayt, 30 digri ɔp ɛn dɔŋ

Di tɛm fɔ no: i nɔ rich 0.5 sɛkɔn

Kapasiti fɔ kip tin dɛn: 80,000 snɛpsho rɛkɔd dɛn

Fes kapasiti: 30,000

Pawa input: DC12V/3A

Netwok intafeys: 1 RJ45 10M/100M adaptiv Itanɛt pɔt, kɔstɔmayz Gigabit nɛtwɔk pɔt

Wiegand intafeys: 1 Wiegand intafeys autput, 1 Wiegand intafeys input

Doa sensor intafeys: 1 doa sensor intafeys input

Doa opin intafeys: 1 doa opin intafeys input

GPIO intafeys: 1 GPIO intafeys we dɛn kin kɔnfigyut

Doa lok intafeys: 1 doa lok intafeys autput

Komyunikeshɔn intafɛs: 1 RS485 kɔmyunikeshɔn intafɛs

Kamɛra: Baynokul kamɛra, ɔl-glas lens, layt we pɔsin kin si ɛn nia infrarɛd, de sɔpɔt fɔ no di bɔdi we gɛt layf

Ifektiv piksɛl: 2.1 milyɔn ifektiv piksɛl, 1920*1080

Minimum iluminɛshɔn: kɔlɔ 0.01Lux @F1.2 (ICR); blak ɛn wayt 0.001Lux @F1.2 (ICR) .

Signal-to-nɔys rεshɔn: ≥50db (AGC OFF) .

Waid dinamik rɛnj: 120db, ISP algɔrithm patɛl ɛksplɔshɔn fɔ fes

Vidio ɛnkɔdin: H.265 Men Profayl ɛnkɔdin/H.264 BP/MP/HP ɛnkɔdin/MJPEG ɛnkɔdin

Tɛmpratura we dɛn de wok: -30°C-70℃

Wok humiditi: 0 ~ 90% rilitiv humidity, no kondensashɔn

Ekwipmɛnt pawa: 20W(MAX)

Sɔl sprɛy lɛvɛl: Rp6 ɔ ɔp

Antistatik: kɔntakt ±6KV, ɛya ±8KV

Pawa saplai: DC12V/2A

Protekshɔn lɛvɛl: IP66

Skrin spesifikeshɔn dɛn: 10.1-inch ay-difinishɔn IPS skrin

Ekwipmɛnt saiz: 319 * 157 * 25.2mm

Tin dɛn

Sɔpɔt binokul layf bɔdi ditekshɔn

Sɔpɔt fɔ trak fes ɛn ɛksplɔshɔn fɔ pipul dɛn we de muv na strɔng baklayt ɛnvayrɔmɛnt

Yunik fes rεkכgnishכn algכrithm, akכrd fכ rεkכgnεz fes, fεs rεkכgnishכn tεm sכmtεm sכm 0.5s

Sɔpɔt ɛkstend tɛmpracha mɛzhɔmɛnt mɔdyul fɔ mɛzhɔ bɔdi tɛmpracha na klos rɛnj ɛn gi ay tɛmpracha alam, ɛn sɔpɔt tɛmpracha data intafɛs protɔkɔl dɔk

We yu yuz LINUX ɔpreshɔn sistem, di sistem stebul

H.265 ɛnkɔdin fɔmat vidio strim de kɔnɛkt dairekt to NVR ɛn ɔda stɔrɔj ​​divays dɛn tru ONVIF protɔkɔl ɛn GB28181 protɔkɔl.

Sɔpɔt lokal stɔrɔj ​​na TF kad, wit kɔntinyu stɔrɔj ​​fɔ pikchɔ fɔ 1 ia ɛn vidio fɔ 1 mɔnt ɔ lɔng (dipen pan di kapasiti fɔ di opshɔnal TF kad)

Min ronin tεm bitwin fεil MTBF>50000h

Sɔpɔt 30,000+ fes kɔmpia laybri ɛn 80,000 rɛkɔgnishɔn rɛkɔd

Rich intafeys protɔkɔl dɛn, we de sɔpɔt TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, MQTT protɔkɔl dɛn ɔnda Windows/Linux ɛn ɔda pletfɔm dɛn

Tɛmpratura we dɛn de wok: -30°C-70℃

Sɔpɔt anti-tamper alam

Sɔpɔt vidio klawd intakɔm

QR kod rida we dɛn bil insay

IC kad rida we dɛn bil insay

Sɔpɔt maykrofon input ɔdio ɛn spika ɔtput ɔdio

Rich hadwae intafeys (I/O, WG26, WG34, RJ45, doa sensa, doa opin, RS485)

10.1-inch IPS kapasitiv tɔch skrin, nɔ imej smyuɛl ɔ dilɛy

Otomatik geyn ɛn ɔtomatik wayt balans de alaw fɔ mek di pikchɔ gɛt tru tru kɔlɔ bak natin nɔ de fɔ du am

Bil-in blak layt lɛvɛl sɛns we dɛn dediket fɔ vidio sɔvɛlayshɔn, mɔ akchual lɔw-layt rɛkɔgnishɔn

3D nɔys ridɔkshɔn ɛn fɔg penetreshɔn teknɔlɔji de mek monitarin imej dɛn ɔnda lɔw iluminɛshɔn klia ɛn mɔ ditayli

Sɔpɔt fɔ blok pat pan di vidio eria

Otomatik wayt balans, manual wayt balans de

Sɔpɔt maksimal ɛksplɔshɔn tɛm sɛtin

Sɔpɔt mobayl fon monitarin sɛtin dɛn

Sɔpɔt 2D nɔys ridɔkshɔn ɛn 3D nɔys ridɔkshɔn

Sɔpɔt fɔ rikodin schedule tɛm piɔyud ɛn ɔplod mɛtɔd sɛtin dɛn

Sɔpɔt di vidio braytnɛs, kɔntrast, hue, sɛtyureshɔn, ɛn gama ajɔstmɛnt

Sɔpɔt fɔ sɛt di maksimal ɔtomɛtik ɛksplɔshɔn tɛm

Sɔpɔt fes intɛligent ɛksplɔshɔn ɛn fes intɛligent ɛnhansmɛnt sɛtin
