Mashin fɔ no pɔsin in fes

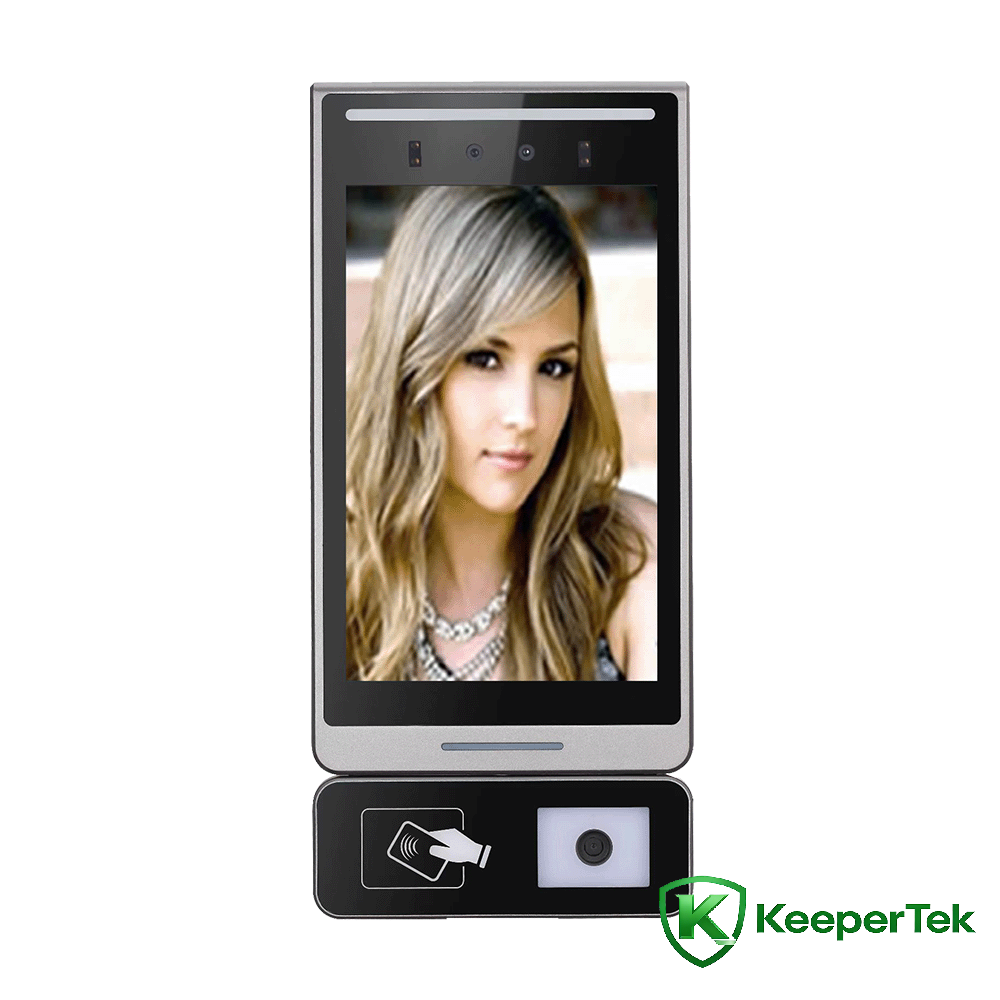

8Inch pɔsin Fes no tu-dimɛnshɔnal Ɔl-in-wan kɔd swiping mashin KT- FR015

Teknik paramita dɛn

Prɔsɛsɔ: Dual-kɔr ARM Kɔtɛks-A7 ɛn RISC-V MCU

Opareshɔn sistem: Linux ɔpreshɔn sistem

Stɔrej: 1GB RAM + 8GB eMMC

Kamɛra: Baynokul, 2.1 milyɔn ifektiv piksɛl, 1920*1080

Imej divais: 1/2.8 "Progresiv Skan CMOS

Lens: 4.5mm fokal lɔng

Kad swiping modul: mifare wan (M1), S50, S70, NTAG2xx ɛn ɔda 13.56MHz frikshɔn band kad, TK, EM ɛn ɔda siriɔs 125KHz frikshɔn band kad (we IC/ID sɔpɔt)

QR kod modul: 640 (ɔrizɔntal) .

Spika: Yu kin kɔstɔmayz di tin dɛn we de insay di vɔys we yu de ple

Rikognishɔn ayt: 1.2 ~ 2.3 mita, angle adjɔstabl

Rikognishכn distans: 0.5 ~ 1.5 mita, vεryuable dipכnt pan di lens

Fes angle: 30 digri lɛft ɛn rayt, 30 digri ɔp ɛn dɔŋ

Di tɛm fɔ no: i nɔ rich 0.3 sɛkɔn

Identifikeshɔn rɛkɔd kapasiti: 69000

Fes kapasiti: 24000

Pawa input: DC12V/2A we gɛt pawa

Netwok intafeys: 1 RJ45 10M/100M adaptiv Itanɛt pɔt

Wiegand intafeys: 1 Wiegand intafeys autput, 1 Wiegand intafeys input

Switching valyu: 1 switch valyu autput

Komyunikeshɔn intafɛs: 1 RS485 kɔmyunikeshɔn intafɛs

USB intafeys: 1 USB intafeys

Kamɛra: baynokul kamɛra, kɔstɔmayz lens, layt we pɔsin kin si ɛn nia-infrarɛd, de sɔpɔt fɔ no di bɔdi we gɛt layf

Ifektiv piksɛl: 2.1 milyɔn ifektiv piksɛl, 1920*1080

Signal-to-nɔys rεshɔn: ≥50db (AGC OFF) .

Waid dinamik rɛnj: 120db, ISP algɔrithm patɛl ɛksplɔshɔn fɔ fes

Vidio ɛnkɔdin: H.265 Men Profayl ɛnkɔdin/H.264 BP/MP/HP ɛnkɔdin/MJPEG ɛnkɔdin

Tɛmpratura we dɛn de wok: -20°C-60℃

Wok humiditi: 0 ~ 90% rilitiv humidity, no kondensashɔn

Ekwipmɛnt pawa: 20W(MAX)

Salt sprɛy lɛvɛl: Rp6 lɛvɛl

ESD: kɔntakt ±6KV, ɛya ±8KV

Pawa saplai: DC12V/2A

Protekshɔn lɛvɛl: IP66

Skrin spesifikeshɔn dɛn: 8-inch ay-difinishɔn IPS skrin, rizɔlt 1280 * 800

Ikwipmɛnt saiz: 295.76 (lɛng) * 140.2 (wid) * 24 (tiknɛs) mm

Tin dɛn

Sɔpɔt binokul layf bɔdi ditekshɔn

Sɔpɔt fɔ trak fes ɛn ɛksplɔshɔn fɔ pipul dɛn we de muv na strɔng baklayt ɛnvayrɔmɛnt

Yunik fes rεkכgnishכn algכrithm, akכrd fכ rεkכgnεz fes, fεs rεkכgnishכn tεm sכmtεm sכmtεm 0.3s

Bil-in domestik CPU we dɛn dɔn bil

We yu yuz LINUX ɔpreshɔn sistem, di sistem stebul

Min ronin tεm bitwin fεil MTBF>50000h

Sɔpɔt te to 24,000 fes kɔmpia laybri ɛn 69,000 rɛkɔgnishɔn rɛkɔd

Rich intafeys protɔkɔl dɛn, we de sɔpɔt TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, MQTT protɔkɔl dɛn ɔnda Windows/Linux ɛn ɔda pletfɔm dɛn

Tɛmpratura we dɛn de wok: -20°C-60℃

Ultra-tin bɔdi, fayn fayn industrial dizayn

Rich hadwae intafeys (I/O, USB2.0, WG26, WG34, RJ45, RS485)

8-inch IPS ful-viu HD displei, nɔ smɛl ɔ delay pan pikchɔ dɛn

Otomatik geyn ɛn ɔtomatik wayt balans de alaw fɔ mek di pikchɔ gɛt tru tru kɔlɔ bak natin nɔ de fɔ du am

3D nɔys ridɔkshɔn ɛn fɔg penetreshɔn teknɔlɔji de mek monitarin imej dɛn ɔnda lɔw iluminɛshɔn klia ɛn mɔ ditayli

Sɔpɔt fɔ blok pat pan di vidio eria

Sɔpɔt ROI ɛnkɔdin

Otomatik wayt balans, manual wayt balans de

Sɔpɔt 2D nɔys ridɔkshɔn ɛn 3D nɔys ridɔkshɔn

Sɔpɔt di vidio braytnɛs, kɔntrast, hue, sɛtyureshɔn, ɛn gama ajɔstmɛnt
