Mashin fɔ no pɔsin in fes

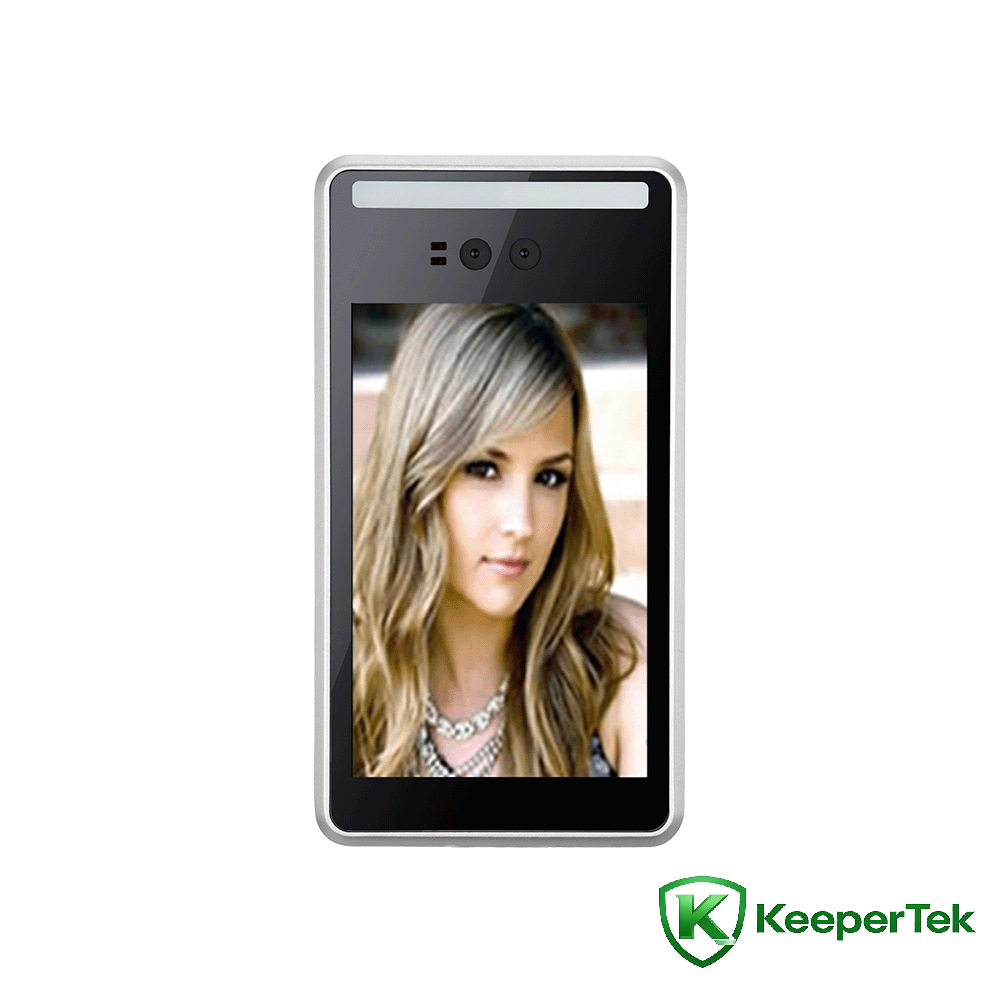

8inch fes Rikɔgnishɔn ɔl-in-wan mashin KT- FR012

Teknik paramita dɛn

Prɔsɛsɔ: Dual-kɔr ARM Kɔtɛks-A7

Opareshɔn sistem: Ɛmbaded Linux ɔpreshɔn sistem

Stɔrej: 1GB RAM + 8GB eMMC

Angul fɔ si: Vɛtikal Angul fɔ si: 30°； Ɔrizɔntal angul fɔ si: 30°

Imej divais: 1/2.8 "Progresiv Skan CMOS

Lens: 6mm we yu de yuz

Kad swiping modul (opshɔnal): 13.56MHz, sɔpɔt Mifare S50, S70 kad, ultralinght kad, NTAG kad, DESFire D21, D41, D81, nɔ-kɔntakt CPU kad

4G modul (opshɔnal): i de sɔpɔt LTE-FDD, LTE-TDD, DC-HSPA+, WCDMA, EDGE, GPRS ɛn ɔda nɛtwɔk standad dɛn, wit maksimal dawlink rit we na 160Mbps ɛn maksimal aplink rit we na 60Mbps

Wifi modul (opshɔnal): 2.4GHz frikshɔn band, IEEE802 b/g/n protɔkɔl； 5GHz frikshɔn band, IEEE802 a/n/ac protɔkɔl

Spika: standad, vɔys plebak kɔntinyu kin kɔstɔmayz

Rikognishɔn ayt: 1.2 ~ 2.2 mita, angle adjɔstabl

Rikognishכn distans: 0.5 ~ 1.5 mita, vεryuable dipכnt pan di lens

Di tɛm fɔ no: i nɔ rich 0.3 sɛkɔn

Kapasiti fɔ rikodɔm: 80,000 snɛpsho rɛkɔd dɛn

Fes kapasiti: 30,000

Skrin braytnɛs: ≥400 cd/m2

Netwok intafeys: 1 RJ45 10M/100M adaptiv Itanɛt pɔt, kɔstɔmayz Gigabit nɛtwɔk pɔt

Wiegand intafeys: 1 Wiegand intafeys autput, 1 Wiegand intafeys input

Door sensor intafeys: 1 chanel doa sensor intafeys

Doa opin intafeys: 1 way doa opin intafeys

Doa lok intafeys: 1-way doa lok intafeys

Komyunikeshɔn intafɛs: 1 chanɛl 485 kɔmyunikeshɔn intafɛs

Kamɛra: Baynokul kamɛra, layt we pɔsin kin si ɛn nia infrarɛd, de sɔpɔt fɔ no di bɔdi we gɛt layf

Ifektiv piksɛl: 2.1 milyɔn ifektiv piksɛl, 1920*1080

Minimum iluminɛshɔn: kɔlɔ 0.01Lux @F1.2 (ICR); blak ɛn wayt 0.001Lux @F1.2 (ICR) .

Signal-to-nɔys rεshɔn: ≥50db (AGC OFF) .

Waid dinamik rɛnj: 120db, ISP algɔrithm patɛl ɛksplɔshɔn fɔ fes

Vidio ɛnkɔdin: H.265 Men Profayl ɛnkɔdin/H.264 BP/MP/HP ɛnkɔdin/MJPEG ɛnkɔdin

Tεmprachכ we de wok: -30°C - +60℃

Wok humiditi: 0 ~ 90% rilitiv humidity, no kondensashɔn

Sɔl sprɛy lɛvɛl: Rp6 ɔ ɔp

Antistatik: kɔntakt ±6KV, ɛya ±8KV

Pawa saplai: DC12V/2A

Anti-riot lɛvɛl: IK06

Protekshɔn lɛvɛl: IP66

Ekwipmɛnt pawa: 20W(MAX)

Ikwipmɛnt saiz: 252 (lɛng) * 136 (wid) * 26 (tiknɛs) mm

Tin dɛn

Sɔpɔt binokul layf bɔdi ditekshɔn

Yunik layv fes rεkכgnishכn algכrithm, akכrd rεkכgnishכn fεs, fεs rεkכgnishכn tεm sכmtεm sכm 0.3s

Min ronin tεm bitwin fεil MTBF>50000H

Sɔpɔt fɔ trak fes ɛn ɛksplɔshɔn fɔ pipul dɛn we de muv na strɔng baklayt ɛnvayrɔmɛnt

Rich intafeys protɔkɔl dɛn, we de sɔpɔt SDK ɛn HTTP protɔkɔl dɛn na bɔku bɔku pletfɔm dɛn lɛk Linux/Windows

If yu yuz Linux ɔpreshɔn sistem, di sistem stebiliti bɛtɛ

Sɔpɔt 30,000+ fes kɔmpia laybri ɛn 80,000 rɛkɔgnishɔn rɛkɔd

Sɔpɔt TF kad ɛkspɛnshɔn stɔrɔj, pikchɔ dɛn kin de kɔntinyu fɔ 1 ia, vidio dɛn kin kɔntinyu fɔ kip fɔ wan wik ɔ mɔ

Tεmprachכ we de wok: -30°C- +60℃

Outdoor IP66 watapruf ɛn dɔstpruf

Di divays de sɔpɔt lokal lɔgin fɔ manej, aks, ɛn kɔnfigyut di divays.

Rich hadwae intafeys (I/O, WG26, WG34, RJ45, doa sensa, doa opin, doa lok, RS485)

8-inch IPS ful-viu HD displei, nɔ smɛl ɔ delay pan pikchɔ dɛn

Otomatik geyn ɛn ɔtomatik wayt balans de alaw fɔ mek di pikchɔ gɛt tru tru kɔlɔ bak natin nɔ de fɔ du am

Bil-in blak layt lɛvɛl sɛns we dɛn dediket fɔ vidio sɔvɛlayshɔn, mɔ akchual lɔw-layt rɛkɔgnishɔn

3D nɔys ridɔkshɔn ɛn fɔg penetreshɔn teknɔlɔji de mek monitarin imej dɛn ɔnda lɔw iluminɛshɔn klia ɛn mɔ ditayli

Sɔpɔt fɔ blok pat pan di vidio eria

Sɔpɔt ROI ɛnkɔdin

Otomatik wayt balans, manual wayt balans de

Sɔpɔt 2D nɔys ridɔkshɔn ɛn 3D nɔys ridɔkshɔn

Sɔpɔt di vidio braytnɛs, kɔntrast, hue, sɛtyureshɔn, ɛn gama ajɔstmɛnt

Sɔpɔt fɔ sɛt di maksimal ɔtomɛtik ɛksplɔshɔn tɛm

Sɔpɔt fes intɛligent ɛksplɔshɔn ɛn fes intɛligent ɛnhansmɛnt sɛtin
