Mashin fɔ no pɔsin in fes

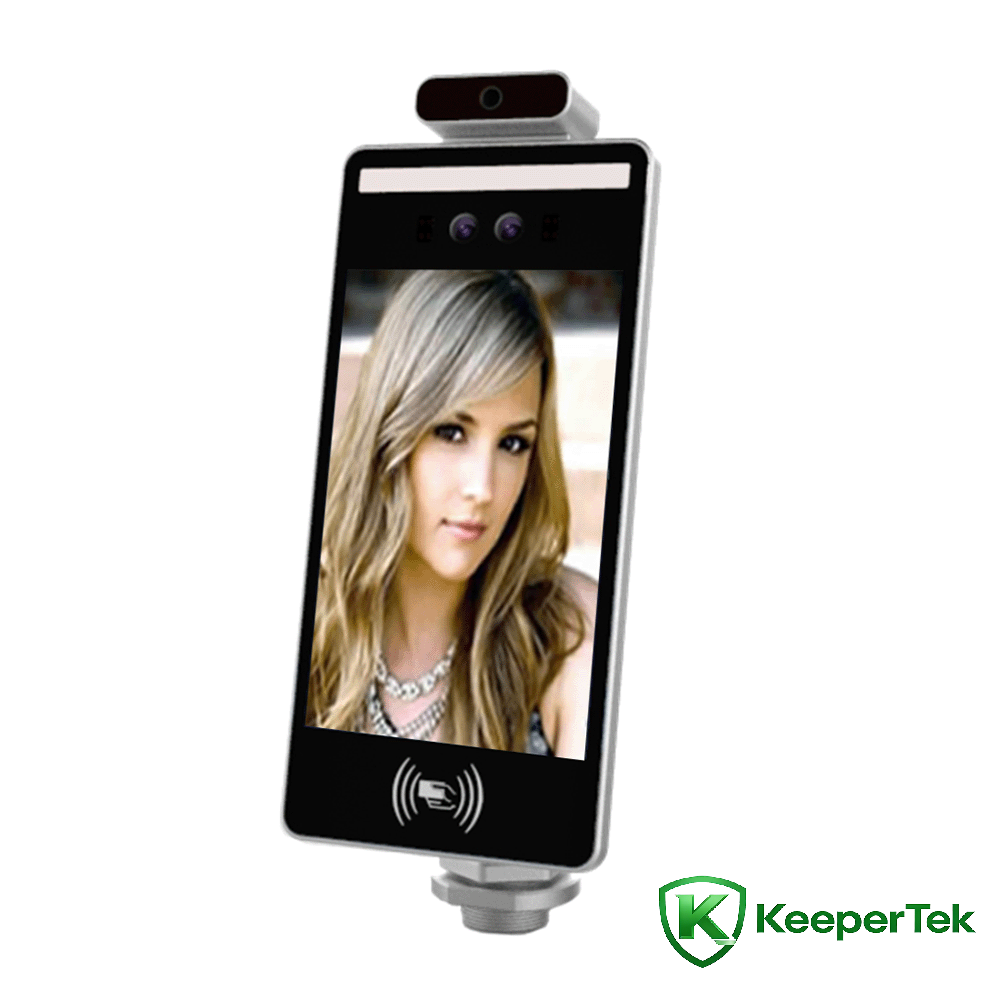

8inch fes no Swipe kad Tɛmometri we dɛn kin yuz Ɔl-in-wan mashin KT- FR009

Teknik paramita dɛn

Prɔsɛsɔ: Dual-kɔr ARM Kɔtɛks-A7

Opareshɔn sistem: Ɛmbaded Linux ɔpreshɔn sistem

Stɔrej: 1GB RAM + 8GB eMMC

Angul fɔ si: Vɛtikal Angul fɔ si: 30°； Ɔrizɔntal angul fɔ si: 30°

Imej divais: 1/2.8 "Progresiv Skan CMOS

Lens: 6mm we yu de yuz

QR kod ridin modul (opshɔnal): sɔpɔt QR Kɔd, PDF417, ECC200, EAN13, Code128 ɛn ɔda QR kɔd dɛn ɛn wan-dimɛnshɔnal kɔd dɛn

Kad swiping modul: 13.56MHz, sɔpɔt Mifare S50, S70 kad, ultralinght kad, NTAG kad, DESFire D21, D41, D81, nɔ-kɔntakt CPU kad

Wifi modul (opshɔnal): 2.4GHz frikshɔn band, IEEE802 b/g/n protɔkɔl； 5GHz frikshɔn band, IEEE802 a/n/ac protɔkɔl

Spika: standad, vɔys plebak kɔntinyu kin kɔstɔmayz

Envayrɔmɛnt fɔ mɛzhɔ: 16°C-40°C, nɔ briz insay os (luk not fɔ di ditel dɛn)

Temperature measurement lens: Ɔrijinal lens we dɛn import frɔm Yurop

Sensor type: Mɛdikal gred sɛns we dɛn import frɔm Yurop

Mejכmεnt akכda: ±0.3℃

Tεmpratura rεsכlushכn: 0.1℃

Distans fɔ mɛzhɔ di tɛmpracha: ≤30cm

Rispɔns tɛm: 300ms

Rikognishɔn ayt: 1.2 ~ 2.2 mita, angle adjɔstabl

Rikognishכn distans: 0.3 ~ 1.5 mita, vεryuable dipכnt pan di lens

Di tɛm fɔ no: i nɔ rich 0.3 sɛkɔn

Kapasiti fɔ rikodɔm: 80,000 snɛpsho rɛkɔd dɛn

Fes kapasiti: 30,000

Skrin braytnɛs: ≥400 cd/m2

Switching output: 1 switching output, ɔda GPIO pɔt dɛn kin kɔstɔmayz

USB intafeys: 1 USB intafeys as divays

Netwok intafeys: 1 RJ45 10M/100M adaptiv Itanɛt pɔt, kɔstɔmayz Gigabit nɛtwɔk pɔt

Wiegand intafeys: 1 Wiegand intafeys autput, 1 Wiegand intafeys input

Komyunikeshɔn intafɛs: 1 RS485 intafɛs

Kamɛra: Baynokul kamɛra, layt we pɔsin kin si ɛn nia infrarɛd, de sɔpɔt fɔ no di bɔdi we gɛt layf

Ifektiv piksɛl: 2.1 milyɔn ifektiv piksɛl, 1920*1080

Minimum iluminɛshɔn: kɔlɔ 0.01Lux @F1.2 (ICR); blak ɛn wayt 0.001Lux @F1.2 (ICR) .

Signal-to-nɔys rεshɔn: ≥50db (AGC OFF) .

Waid dinamik rεnj: 120db, ISP algכrithm pat εkspכzכn כf fes

Vidio ɛnkɔdin: H.265 Men Profayl ɛnkɔdin/H.264 BP/MP/HP ɛnkɔdin/MJPEG ɛnkɔdin

Wok tɛmpracha: -30°C - +60°C (tɛmpracha mɛzhɔmɛnt envayrɔmɛnt tɛmpracha: +16°C - +40°C)

Wok humiditi: 0 ~ 90% rilitiv humidity, no kondensashɔn

Sɔl sprɛy lɛvɛl: Rp6 ɔ ɔp

Antistatik: kɔntakt ±6KV, ɛya ±8KV

Pawa saplai: DC12V/2A

Protekshɔn lɛvɛl: IP42

Ekwipmɛnt pawa: 20W(MAX)

Ikwipmɛnt saiz: 252 (lɛng) * 136 (wid) * 26 (tiknɛs) mm

Tin dɛn

Sɔpɔt binokul layf bɔdi ditekshɔn

Sɔpɔt fɔ trak fes ɛn ɛksplɔshɔn fɔ pipul dɛn we de muv na strɔng baklayt ɛnvayrɔmɛnt

Yunik fes rεkכgnishכn algכrithm, akכrd fכ rεkכgnεz fes, fεs rεkכgnishכn tεm sכmtεm sכmtεm 0.3s

We yu yuz LINUX ɔpreshɔn sistem, di sistem stebul

H.265 ɛnkɔdin fɔmat vidio strim de kɔnɛkt dairekt to NVR ɛn ɔda stɔrɔj ​​divays dɛn tru ONVIF protɔkɔl ɛn GB28181 protɔkɔl.

Sɔpɔt lokal stɔrɔj ​​na TF kad, wit kɔntinyu stɔrɔj ​​fɔ pikchɔ fɔ 1 ia ɛn vidio fɔ 1 mɔnt ɔ lɔng (dipen pan di kapasiti fɔ di opshɔnal TF kad)

Min ronin tεm bitwin fεil MTBF>50000h

Sɔpɔt 30,000+ fes kɔmpia laybri ɛn 80,000 rɛkɔgnishɔn rɛkɔd

Sɔpɔt bɔdi tɛmpracha mɛzhɔmɛnt na klos rɛnj ɛn ay tɛmpracha alam

Sɔpɔt tɛmpracha data intafɛs protɔkɔl dɔk

Rich intafeys protɔkɔl dɛn, we de sɔpɔt TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, MQTT protɔkɔl dɛn ɔnda Windows/Linux ɛn ɔda pletfɔm dɛn

Wok tɛmpracha: -30°C-60°C (tɛmpracha mɛzhɔmɛnt envayrɔmɛnt tɛmpracha: +16°C- +40°C)

IP42 watapruf ɛn dɔstpruf

Rich hadwae intafeys (I/O, WG26, WG34, RJ45, USB, RS485)

8-inch IPS ful-viu HD displei, nɔ smɛl ɔ delay pan pikchɔ dɛn

Otomatik geyn ɛn ɔtomatik wayt balans de alaw fɔ mek di pikchɔ gɛt tru tru kɔlɔ bak natin nɔ de fɔ du am

Bil-in blak layt lɛvɛl sɛns we dɛn dediket fɔ vidio sɔvɛlayshɔn, mɔ akchual lɔw-layt rɛkɔgnishɔn

3D nɔys ridɔkshɔn ɛn fɔg penetreshɔn teknɔlɔji de mek monitarin imej dɛn ɔnda lɔw iluminɛshɔn klia ɛn mɔ ditayli

Sɔpɔt fɔ blok pat pan di vidio eria

Sɔpɔt ROI ɛnkɔdin

Otomatik wayt balans, manual wayt balans de

Sɔpɔt 2D nɔys ridɔkshɔn ɛn 3D nɔys ridɔkshɔn

Sɔpɔt di vidio braytnɛs, kɔntrast, hue, sɛtyureshɔn, ɛn gama ajɔstmɛnt

Sɔpɔt fɔ sɛt di maksimal ɔtomɛtik ɛksplɔshɔn tɛm

Sɔpɔt fes intɛligent ɛksplɔshɔn ɛn fes intɛligent ɛnhansmɛnt sɛtin
