Mashin fɔ no pɔsin in fes

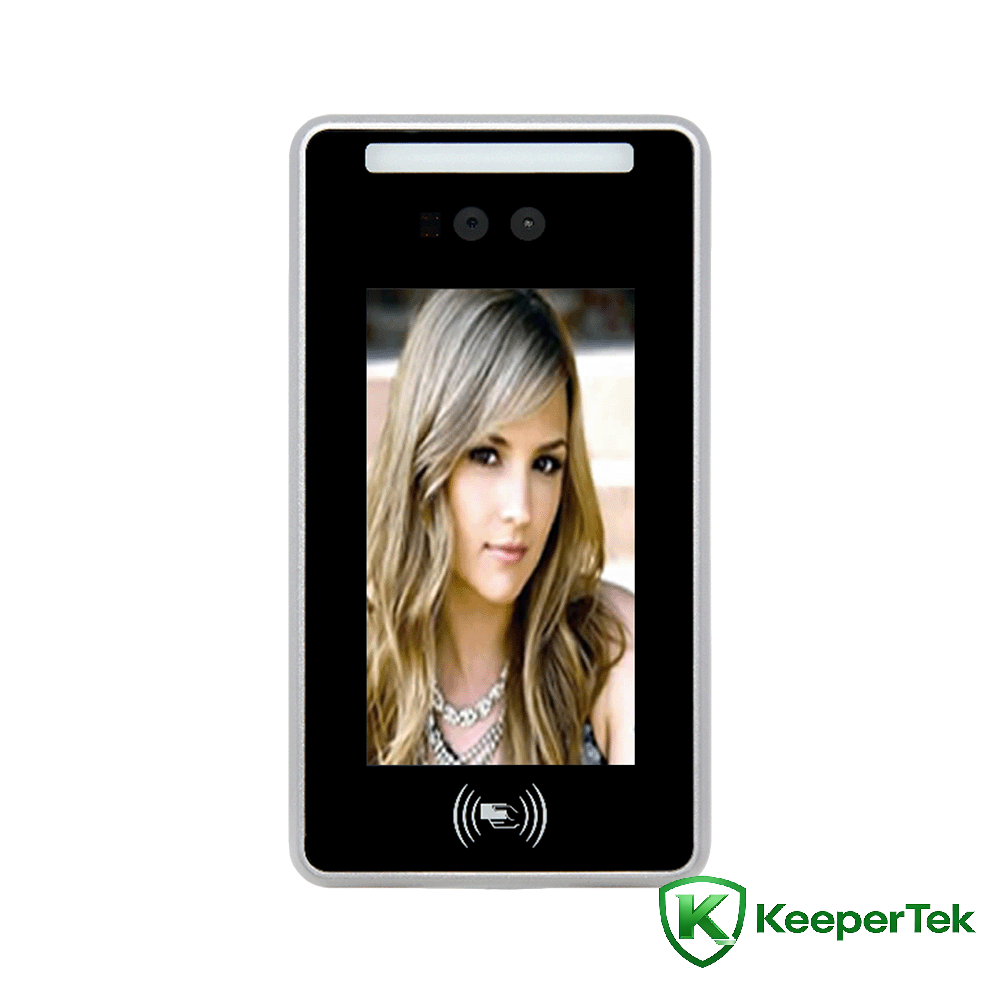

7inch inch pipul dɛn Fes rɛkɔgnishɔn kad we de swip ɔl-in-wan mashin KT- FR007

Teknik paramita dɛn

Prɔsɛsɔ: Dual-Kɔr ARM Kɔtɛks-A7, @1.0GHz

Opareshɔn sistem: Linux ɔpreshɔn sistem

Stɔrej: 8GB EMMC

Kamɛra: Baynokul, 2.1 milyɔn ifektiv piksɛl, 1920*1080

Imej divais: 1/2.8 "Progresiv Skan CMOS

Lens: 6mm we yu de yuz

Kad swiping modul: 13.56MHz, sɔpɔt Mifare S50, S70 kad, ultralinght kad, NTAG kad, DESFire D21, D41, D81, nɔ-kɔntakt CPU kad

WIFI modul: IEEE 802.11b/g/n standad, sɔpɔt 2.4GHz frikshɔn band, spid rɛnj 1Mbps-150Mbps

Bluetooth modul: 8DPSK, π/4DQPSK, GFSK, spid rɛnj 1Mbps-2, 3Mbps

Spika: standad, vɔys plebak kɔntinyu kin kɔstɔmayz

Rikognishɔn ayt: 1.2 ~ 2.2 mita, angle adjɔstabl

Rikognishכn distans: 0.5 ~ 1.5 mita, vεryuable dipכnt pan di lens

Fes angle: 30 digri lɛft ɛn rayt, 30 digri ɔp ɛn dɔŋ

Di tɛm fɔ no: i nɔ rich 0.5 sɛkɔn

Kapasiti fɔ kip tin dɛn: 60,000 snɛpsho rɛkɔd dɛn

Fes kapasiti: 20,000

Di kayn kad dɛn we yu kin swip: 13.56MHz, ID kad siriɔs nɔmba, Mifare, NFC (opshɔnal bilt-in ID kad rida)

Switching output: 1 switching output, ɔda GPIO pɔt dɛn kin kɔstɔmayz

USB intafeys: 1 USB intafeys as divays

Netwok intafeys: 1 RJ45 10M/100M adaptiv Itanɛt pɔt, kɔstɔmayz Gigabit nɛtwɔk pɔt

Wiegand intafeys: 1 Wiegand intafeys autput, 1 Wiegand intafeys input

Komyunikeshɔn intafɛs: 1 RS485 intafɛs

Kamɛra: Baynokul kamɛra, layt we pɔsin kin si ɛn nia infrarɛd, de sɔpɔt fɔ no di bɔdi we gɛt layf

Ifektiv piksɛl: 2.1 milyɔn ifektiv piksɛl, 1920*1080

Minimum iluminɛshɔn: kɔlɔ 0.01Lux @F1.2 (ICR); blak ɛn wayt 0.001Lux @F1.2 (ICR) .

Signal-to-nɔys rεshɔn: ≥50db (AGC OFF) .

Tεmprachכ we de wok: -30°C - +60℃

Wok humiditi: 0 ~ 90% rilitiv humidity, no kondensashɔn

Ekwipmɛnt pawa: 10W (MAX) .

Sɔl sprɛy lɛvɛl: Rp6 ɔ ɔp

Antistatik: kɔntakt ±6KV, ɛya ±8KV

Pawa saplai: DC12V/2A

Anti-riot lɛvɛl: IK06

Protekshɔn lɛvɛl: IP66

Skrin spesifikeshɔn dɛn: 7-inch ay-difinishɔn IPS skrin

Ikwipmɛnt saiz: 252 (lɛng) * 136 (wid) * 26 (tiknɛs) mm

Tin dɛn

Sɔpɔt binokul layf bɔdi ditekshɔn

Sɔpɔt fɔ trak fes ɛn ɛksplɔshɔn fɔ pipul dɛn we de muv na strɔng baklayt ɛnvayrɔmɛnt

Yunik fes rεkכgnishכn algכrithm, akכrd fכ rεkכgnεz fes, fεs rεkכgnishכn tεm sכmtεm sכm 0.5s

Bil-in domestik CPU we dɛn dɔn bil

We yu yuz LINUX ɔpreshɔn sistem, di sistem stebul

Min ronin tεm bitwin fεil MTBF>50000h

Sɔpɔt te to 20,000+ fes kɔmpia laybri ɛn 60,000 rɛkɔgnishɔn rɛkɔd

Rich intafeys protɔkɔl dɛn, we de sɔpɔt TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, SMTP, UPNP, MQTT protɔkɔl dɛn ɔnda Windows/Linux ɛn ɔda pletfɔm dɛn

Tɛmpratura we dɛn de wok: -30°C-60℃

IP66 watapruf ɛn dɔstpruf

Host bilt-in IC kad swiping modul

Rich hadwae intafeys (I/O, WG26, WG34, RJ45, USB, RS485)

7-inch IPS ful-viu HD displei, nɔ smɛl ɔ delay pan pikchɔ dɛn
