Mashin fɔ no pɔsin in fes

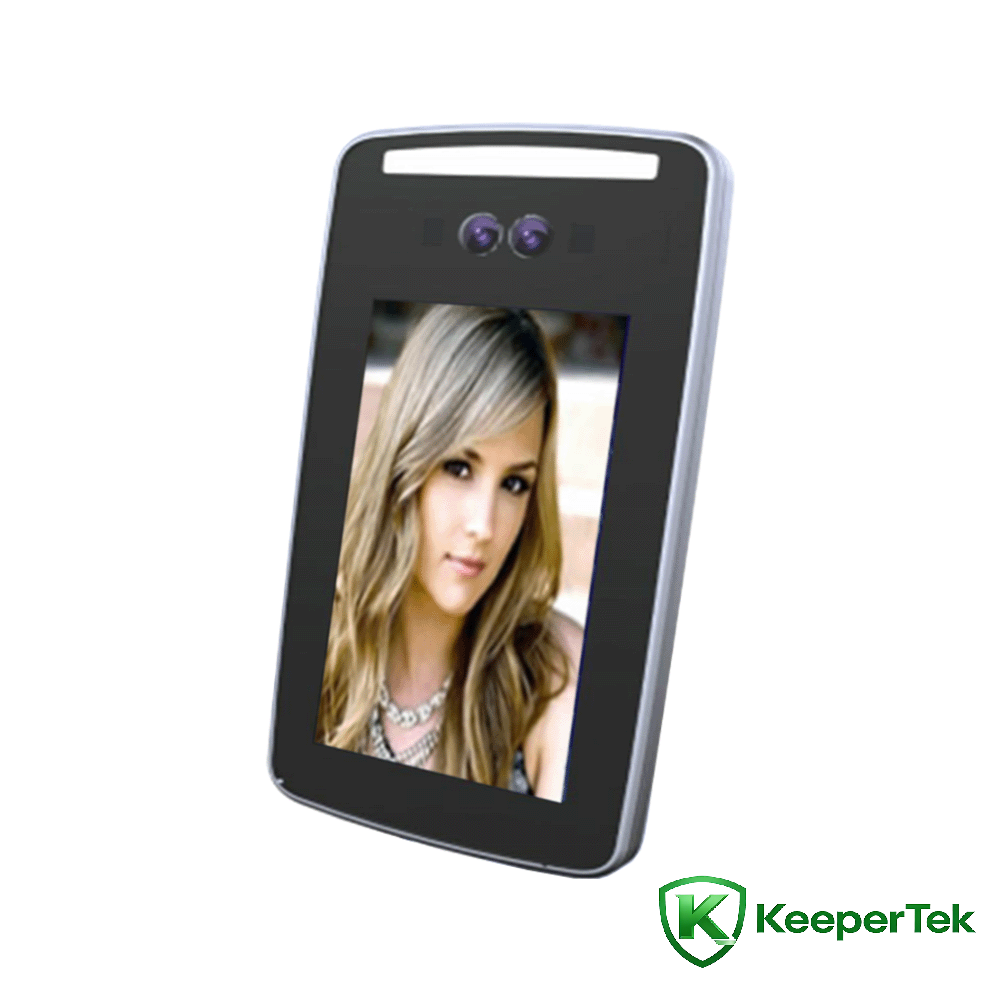

7inch inch pipul dɛn Fes rɛkɔgnishɔn ɔl-in-wan mashin KT- FR005

Teknik paramita dɛn

Prɔsɛsɔ: dual-kɔr prɔsɛsɔ + 1G mɛmori + 16G EMMC

Opareshɔn sistem: Linux ɔpreshɔn sistem

Storage: Sɔpɔt TF kad stɔrɔj

Kamɛra: Baynokul, 2.1 milyɔn ifektiv piksɛl, 1920*1080

Imej divais: 1/2.8 "Progresiv Skan CMOS

Lens: 6mm we yu de yuz

Spika: standad, vɔys plebak kɔntinyu kin kɔstɔmayz

Rikognishɔn ayt: 1.2 ~ 2.2 mita, angle adjɔstabl

Rikognishכn distans: 0.5 ~ 1.5 mita, vεryuable dipכnt pan di lens

Fes angle: 30 digri lɛft ɛn rayt, 30 digri ɔp ɛn dɔŋ

Di tɛm fɔ no: i nɔ rich 0.5 sɛkɔn

Fes kapasiti: 20,000

Kapasiti fɔ kip tin dɛn: 60,000 snɛpsho rɛkɔd dɛn

Switching output: 1 switching output, ɔda GPIO pɔt dɛn kin kɔstɔmayz

Netwok intafeys: 1 RJ45 10M/100M adaptiv Itanɛt pɔt, kɔstɔmayz Gigabit nɛtwɔk pɔt

Wiegand intafeys: 1 Wiegand intafeys input, 1 Wiegand intafeys autput

USB intafeys: 1 USB intafeys as divays

Komyunikeshɔn intafɛs: 1 RS485 intafɛs

Kamɛra: Baynokul kamɛra, layt we pɔsin kin si ɛn nia infrarɛd, de sɔpɔt fɔ no di bɔdi we gɛt layf

Ifektiv piksɛl: 2.1 milyɔn ifektiv piksɛl, 1920*1080

Minimum iluminɛshɔn: kɔlɔ 0.01Lux @F1.2 (ICR); blak ɛn wayt 0.001Lux @F1.2 (ICR) .

Signal-to-nɔys rεshɔn: ≥50db (AGC OFF) .

Waid dinamik rɛnj: 100db, ISP algɔrithm patɛl ɛksplɔshɔn fɔ fes

Vidio ɛnkɔdin: H.265 Men Profayl ɛnkɔdin/H.264 BP/MP/HP ɛnkɔdin/MJPEG ɛnkɔdin

Wɛb pej kɔnfigyushɔn: dɛn sɔpɔt am

Divays rimot ɔpgrɛd: dɛn sɔpɔt am

Diployment method: sɔpɔt pɔblik nɛtwɔk ɛn LAN yus

Tεmprachכ we de wok: -30°C - +60℃

Wok humiditi: 0 ~ 90% rilitiv humidity, no kondensashɔn

Sɔl sprɛy lɛvɛl: Rp6 ɔ ɔp

Antistatik: kɔntakt ±6KV, ɛya ±8KV

Pawa saplai: DC12V/2A

Anti-riot lɛvɛl: IK06

Protekshɔn lɛvɛl: IP66

Divais pawa: 14.4W(MAX)

Ikwipmɛnt saiz: 128 (wid) * 28 (tiknɛs) * 240 (ayt) mm

Tin dɛn

Sɔpɔt binokul layf bɔdi ditekshɔn

Sɔpɔt fɔ trak fes ɛn ɛksplɔshɔn fɔ pipul dɛn we de muv na strɔng baklayt ɛnvayrɔmɛnt

Yunik fes rεkכgnishכn algכrithm, akכrd fכ rεkכgnεz fes, fεs rεkכgnishכn tεm sכmtεm sכm 0.5s

 Bil-in domestik CPU we dɛn dɔn bil

We yu yuz LINUX ɔpreshɔn sistem, di sistem stebul

Min ronin tεm bitwin fεil MTBF>50000h

Sɔpɔt 20,000 laybri fɔ kɔmpia fes ɛn 60,000 rɛkɔgnishɔn rɛkɔd

Rich intafeys protɔkɔl dɛn, we de sɔpɔt TCP/IP, UDP, HTTP, DNS, DHCP, MQTT protɔkɔl dɛn ɔnda Windows/Linux ɛn ɔda pletfɔm dɛn · Wok tɛmpracha: -30°C-60℃

IP66 watapruf ɛn dɔstpruf

 Bil-in fotosɛnsitiv sɛns, ɔtomɛtik ajɔst fil layt intɛnsity

Rich hadwae intafeys (I/O, WG26, WG34, RJ45, RS485)

7-inch IPS ful-viu HD displei, nɔ smɛl ɔ delay pan pikchɔ dɛn
